The story of the Bakar BioEnginuity Hub is a tale with lots of peaks and valleys, not unlike the dramatic angles and plains that make up this example of 1970 Brutalist architecture on the University of California, Berkeley campus.
“Brutalism should be a mixture of utilitarian and sculptural strength and beauty,” Ken Lidicker, studio director and senior associate for MBH Architects and lead on this project, said. “It [the Hub] is a piece of art in and of itself.” The LEED Gold-certified site relies heavily on concrete for that expression, but also includes two new plazas and a 6,600-square-foot glass-fronted addition to accommodate offices and conference rooms.
The Hub was previously the notorious Berkeley Art Museum and Pacific Film Archive, built just across the street from the main campus during a period when the university was trying to lean more towards the humanities. Come 2014, it was deemed seismically unsafe, vacated, and the museum and archive were relocated. Temporary structural improvements kept the building standing. Today, in its latest iteration as a historic restoration on the local and federal registry for historical buildings, it’s serving the community in a completely new way as an incubator for life science-based start-ups.
A Flexible, Affordable Hub for Start-ups

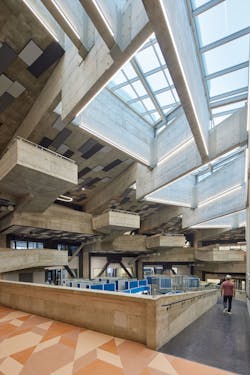

A main atrium area is central to the Hub, with a circular pathway spiraling up via ramps and cantilevered landings that house the primary labs. The design team tried to stay true to this original aesthetic and avoided placing any structural elements under those. “The landings are pretty iconic and were really important to the historical fabric,” Lidicker stressed. “We wanted to keep that atrium feeling as majestic and as powerful as possible.”
“We tried to do as little damage to the building as possible,” Lidicker recalled. “Everything we did is reversible at some point if technologies change, and there’s ways to bring it back to its original pristine shape.”
Lighting the Way to the Future
Another big focus for the restoration was bringing a lot of glass that had been previously converted to fiberglass back to its original intent. The landings were also the former art galleries, so some skylights had been covered up to prevent them from inflicting any UV damage to the art.

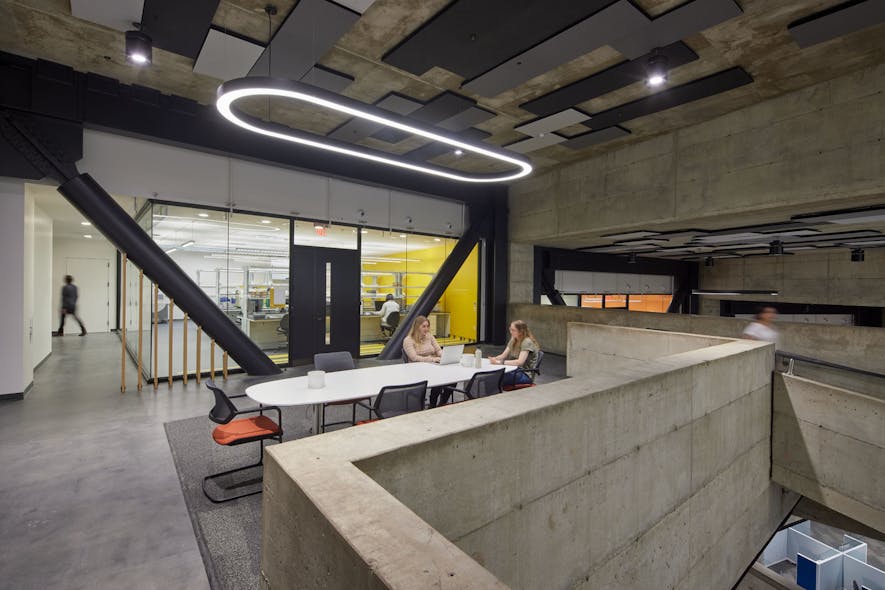

The lighting as a program also helps promote wayfinding, with wall-washing luminaries featuring up/down lenses and linear base lighting added to both the cantilevered beams and the ramps in the atrium. Fixtures were designed to mimic the original lighting of the art museum.
The mechanical, electrical and plumbing infrastructure was also overhauled, replacing a gas-and-steam system with all electric, smaller and higher-efficiency equipment like occupancy and daylight sensors/harvesting that reduce the demand for electrical consumption. Those design decisions all helped the Hub to achieve low EUI, operational carbon neutrality and net-zero HVAC water use. The all-electric building system also will reduce carbon emissions by 50% after the year 2030.
“There had been a fence around it [the Hub] which we took down,” Lidicker explained. “Although its function is private, we wanted to open up the building and make it public.”
The four-way connection the Hub provides between the student body, the scientific community, the surrounding Berkeley neighborhoods and society as a whole is one that will result in ground-breaking ideas that will make lives better for years to come.
